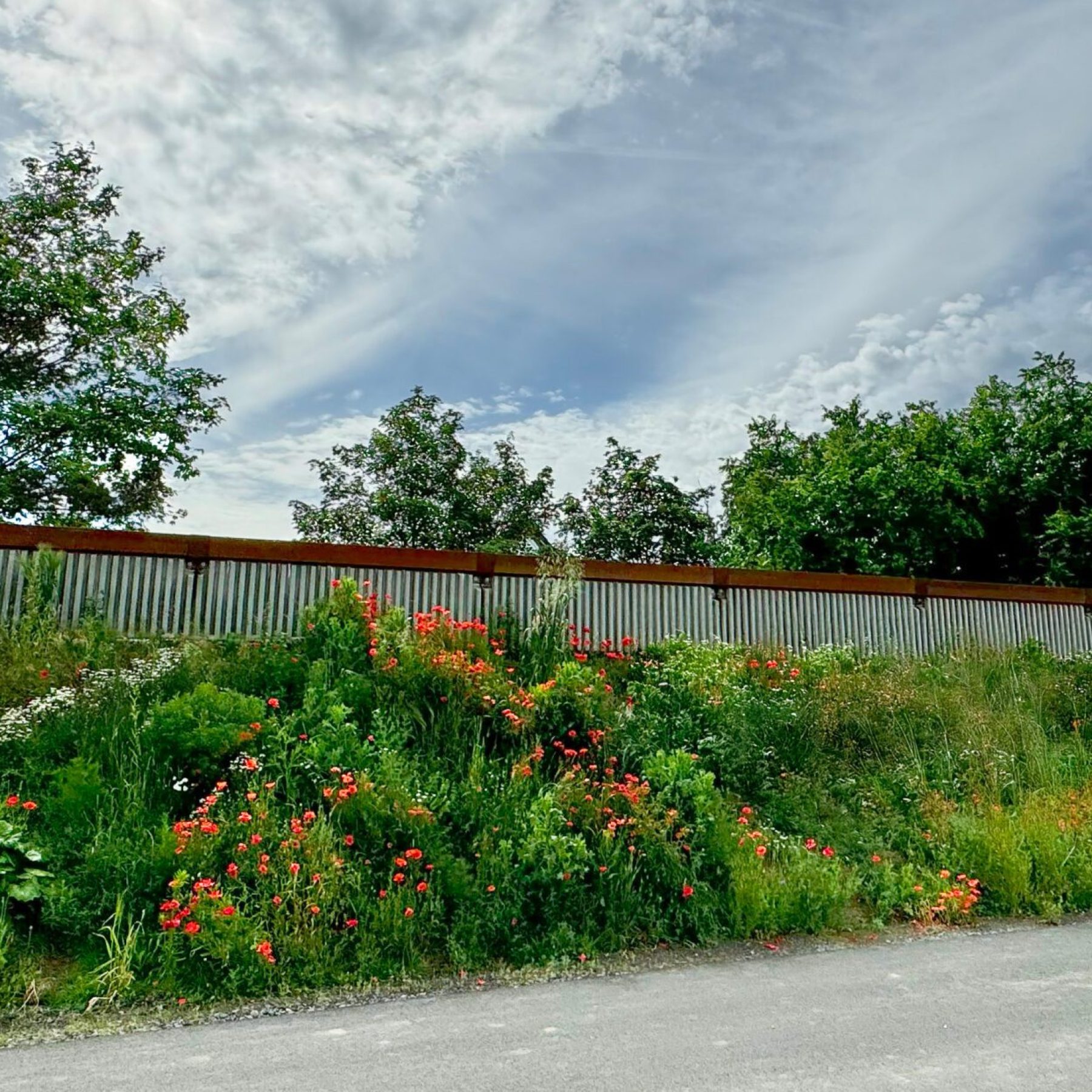

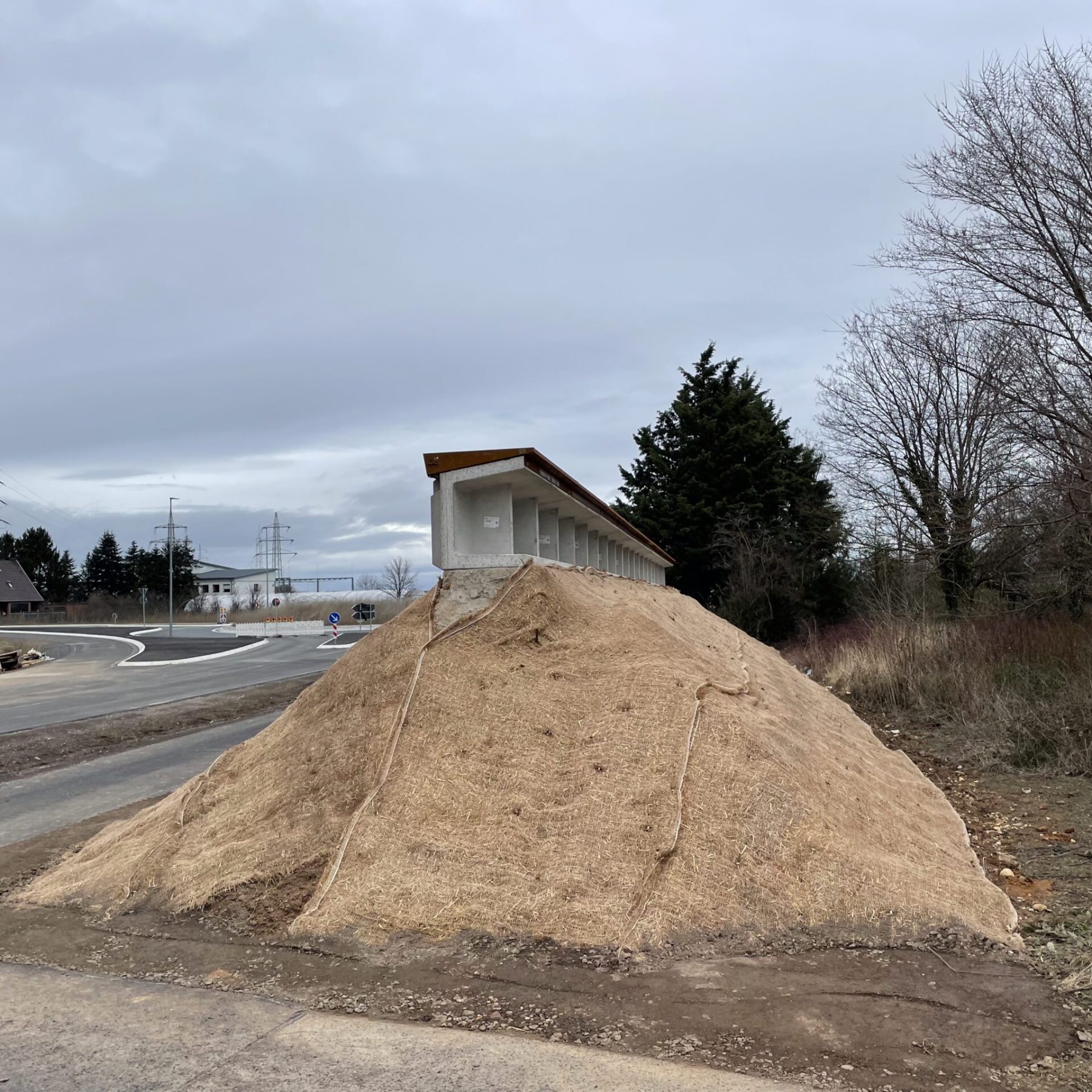

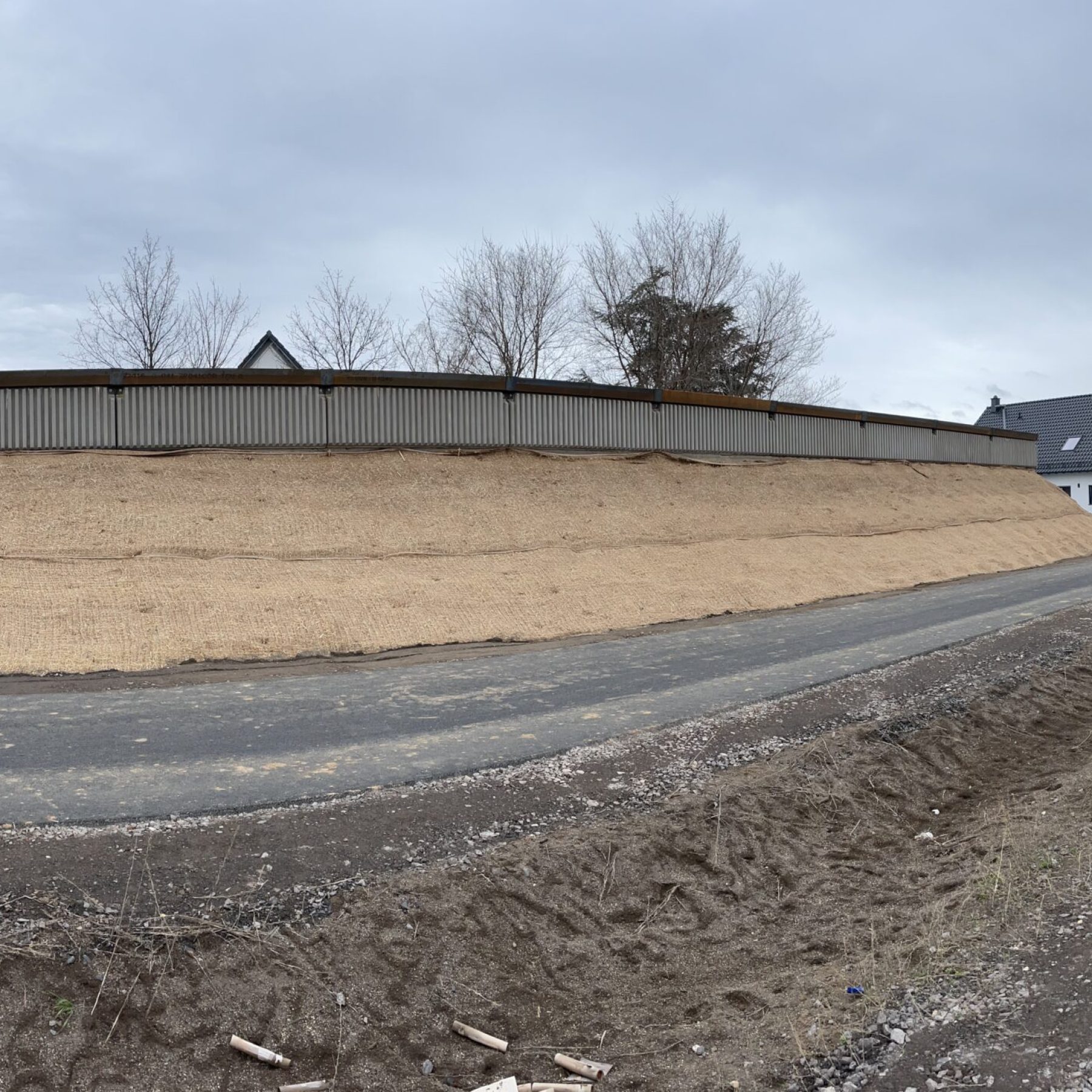

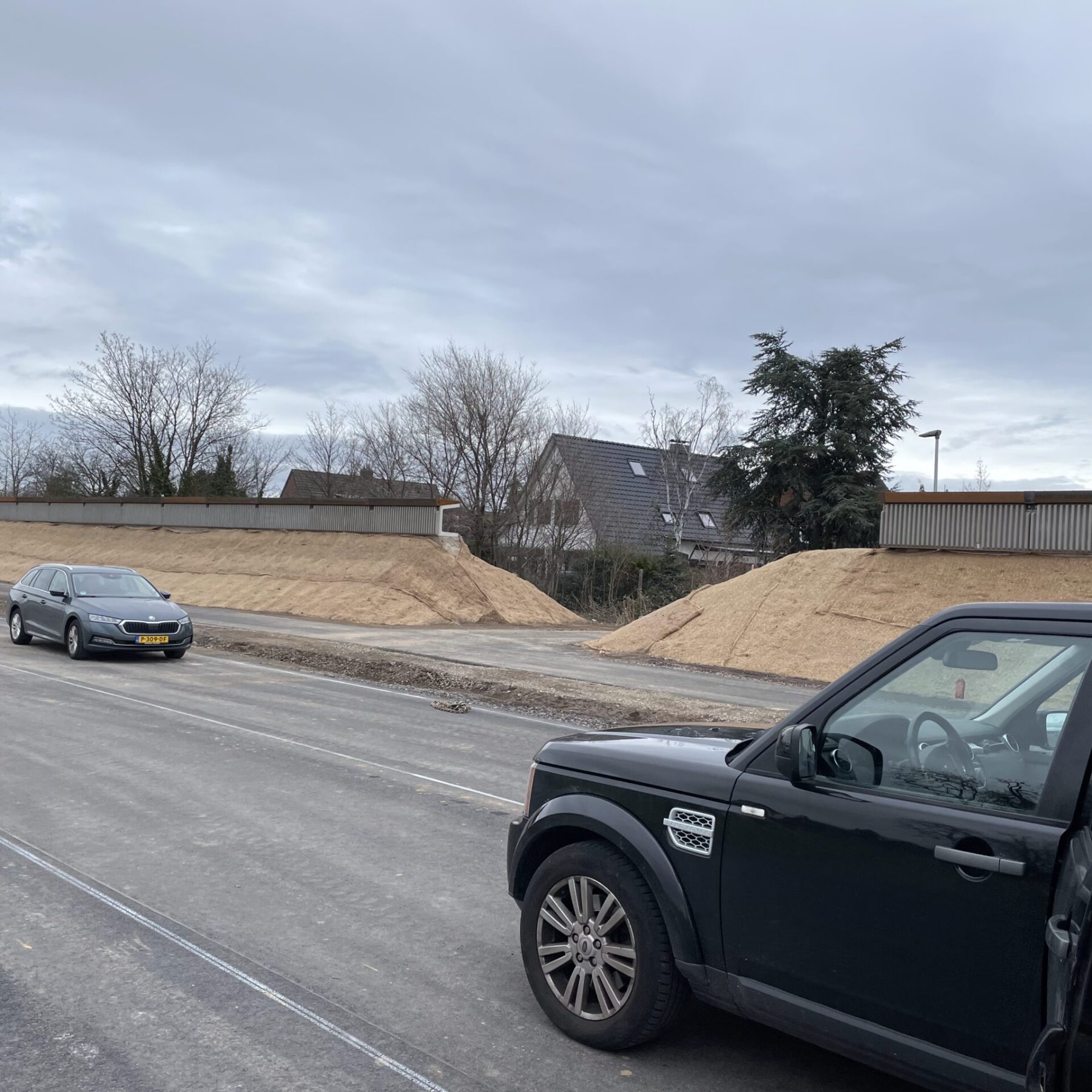

In 2024, a 140-meter-long WHIS®wall was installed along a busy traffic route in Euskirchen, Germany. This cutting-edge noise solution from 4Silence combines a low-height noise barrier with a corten steel diffractor, achieving a sound reduction of 7 to 9 dB—equivalent to a traditional 3-meter-high barrier. Thanks to its modest height of only 1 meter, the WHIS®wall preserves views for both residents and road users, improving public acceptance in urban environments.
Efficient Installation and Sustainable Design
The WHIS®wall in Euskirchen was installed quickly and efficiently, with a production capacity of up to 300 meters per day. The construction only requires a flat and stable surface, eliminating the need for deep foundations. Moreover, the wall is virtually maintenance-free, needing just one inspection every two years.
Technical Specifications
Dimensions: 2980 x 1020 x 1020 mm
Noise Reduction: 7–9 dB
Frequency Range: 400–2000 Hz
Weight: approx. 1000 kg/m
Diffractor Material: Corten steel
Base Options: Absorbing or reflecting concrete, gabion, stone cladding, or green finish
Suitable Applications
The WHIS®wall is ideal for areas where traditional noise barriers are not feasible or desirable, such as:
Urban areas with limited space
Residential neighborhoods near busy roads
Railways and provincial roads
Learn More
Want to learn more about the WHIS®wall and how it can reduce noise in your project? Visit our product page for detailed information and specifications.
